IEC 60529 IP5X6X Dust Test Chamber for 85 °C/85 % RH Environmental Testing Machine

Name: IEC 60529 IP5X6X Dust Test Chamber for 85 C85 RH Environmental Testing Machine
Brand: Kingpo
Price: 1 USD

Best IEC 60529 IP5X6X Dust Test Chamber for 85 °C/85 % RH Environmental Testing Machine wholesale

standard : IEC 60529,ISO20653

Can perform : long time 85 °C/85 % RH test

Power : 380V, 50Hz +/- 10%, three-phase-five-wire system

Humidity sensor dry and wet bulb sensor : Resolution: ± 1%

Specimen power outlet : ust-proof socket AC220V 16A

Temperature range : Ambient to+50°C

Brand Name : Kingpo

Certification : Calibration Certificate

Place of Origin : China

MOQ : 1

Price : To be Quoted

Payment Terms : T/T

Supply Ability : 25 sets per month

Delivery Time : 30 working days

Packaging Details : safety carton pack or plywood box

Contact Now

IEC 60529 IP5X6X Dust Test Chamber / Environmental Testing Machine

Product Overview

The IEC 60529 IP5X6X Dust Test Chamber is designed for simulating dust and sand environmental conditions. This environmental testing machine evaluates the effects of dust-filled environments to validate product seal integrity. Widely utilized across multiple industries including automotive, electro-technical products, materials, coatings, and solar energy applications.

Technical Specifications

Model	K-800	KP-X1000	KP-X1500	KP-X2000
Internal dimensions (mm)	800×1000×1000	1000×1000×1000	1000×1500×1000	1000×2000×1000
Overall dimensions (mm)	1040×1450×1960	1200×1450×1960	1250×1900×1960	1300×2400×1960
Temperature range	Ambient to +50°C
Relative Humidity	<30% RH
Normal wire diameter	50μm
Normal width of a gap between wire	75μm
The talcum powder amount	2kg~4kg/m³
Fight time	0~99h59m
Fan cycle time	0~99h59m
Specimen power outlet	Dust-proof socket AC220V 16A
Controller	5.7" programmable color display touch screen controller
Vacuum system	Equipped with pressure gauge, air filter, pressure regulator, connecting tube
Circulating fan	Enclosed alloy low-noise motor, multi-vane centrifugal fan
Heating system	Independent Nichrome electronic heating system
Power supply	380V 50HZ
Safety devices	Electric leakage, short circuit, over-temperature, motor overheating over current protection / Power failure memory function for controller
Standard	IEC 60529, ISO 20653

Standard Features

Temperature control and display unit
Humidity control and display unit
French TECUMSEH compressor cooling unit
Environment friendly refrigerant R404A & R23
Humidification system with external isolation, stainless steel surface evaporation humidifier
Heating element is Nichrome heater
Circulation with low noise centrifugal wind fan
Temperature sensor PT-100, Resolution: ± 0.001 ℃
Humidity sensor dry and wet bulb sensor, Resolution: ± 1%
Build-in water reservoir
Programmable color LCD touch screen controller
Viewing window with interior lighting
Test hole with silicone screw plug
2 pieces of adjustable and removable mesh shelving
Bottom install 4 castors for ease moving, with brakes function
R-232 (R-485) interface, PC Link, communication with LAN network interface
Programs reach to 999 groups and 999 sections
Safety protection system
Interior material is high quality SUS304 stainless steel
Exterior material is steel plate with protective coating
Thermal insulation is Polyurethane foam
Automatic water supply, water purification system
Silicon seal for door
Can perform long time 85°C/85% RH tests
380V, 50Hz +/- 10%, three-phase-five-wire system

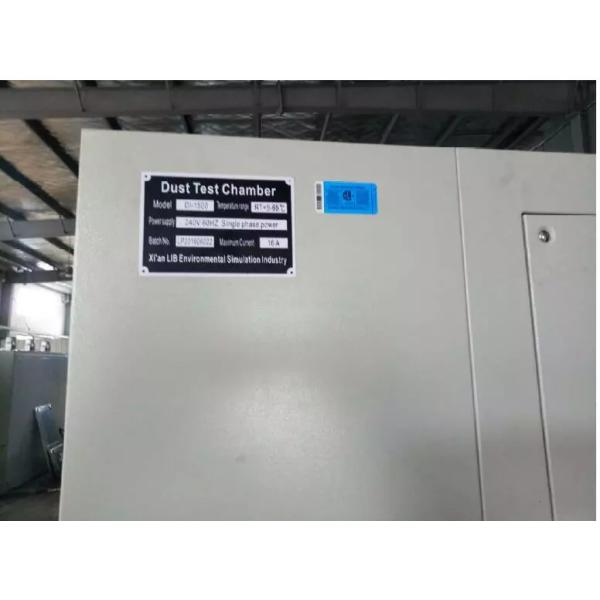

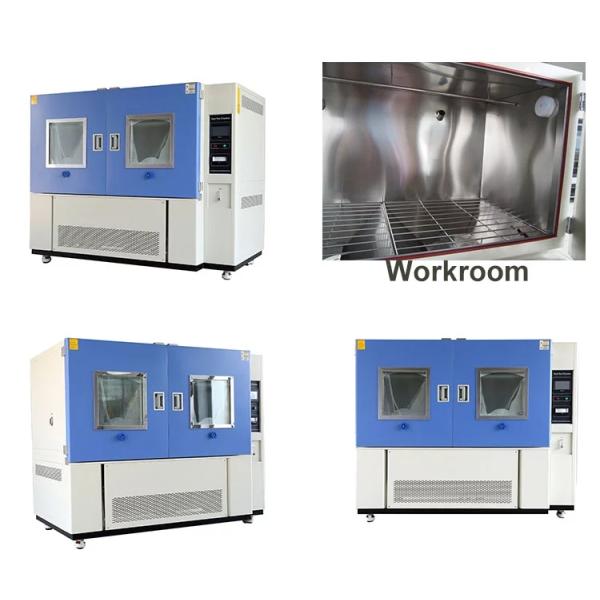

Product Images

IEC 60529 IP5X6X Dust Test Chamber for 85 °C/85 % RH Environmental Testing Machine
